NOVA 1:1 L Standard

curve


CA NOVA 1:1 L Standard

Click image to view technical specs

CA NOVA 1:1 L Standard

Slow-Speed Electric Handpieces

The Bien-Air CA NOVA 1:1 L Standard attachment offers robust Swiss engineering in a stainless steel construction, providing reliable performance for restorative and prosthetic work with a head diameter of 7.8 mm with a speed range of 100 – 40,000 rpm. Equipped with an anti-retraction valve, four asymmetrical air/water sprays for precise irrigation, and enhanced shock resistance for double the service life, it prioritizes durability and patient safety in demanding clinical environments. Though slightly heavier at 72g compared to micro-series variants, it is compatible with standard and micro-series motors.

CA NOVA Features at a Glance

Improved Accessibility

Improved Accessibility & Visibility

Ultra-slim stainless steel design with the smallest head in its class and lightest weight.

Smallest

Enhanced Safety

Enhanced Safety

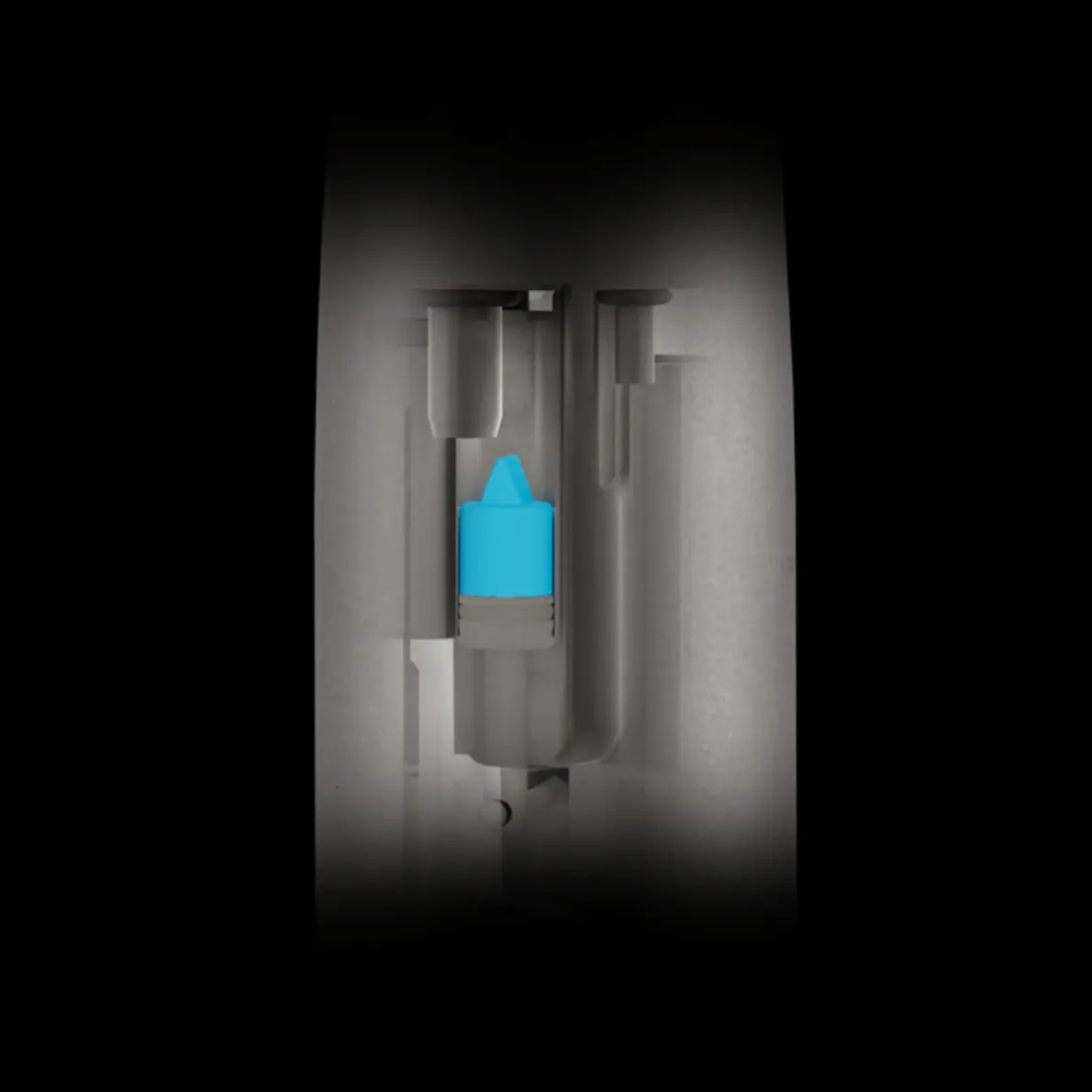

The sterilizable, anti-retraction valve minimizes backflow of fluids from the oral cavity into your dental unit hoses.

Anti-Retraction

Extended Service Life

Extended Service Life

The new PVD-coated chuck system alleviates jamming and increases service life by 30%.

Extended Service Life

Technical Specifications for CA NOVA 1:1 L Standard

Specification CA NOVA 1:1 L Standard
Use Case Restorative & Rotary Endo
Ratio 1:1
Bur Latch Type
Speed Range (rpm) 100 – 40,000
Motor Compatibility Micro-Series
Noise Level (dBa) 55
Spray/Irrigation 1 separated air/water
Head Diameter (mm) Top 8.3, Bottom 6.4
Neck Diameter (mm) 7.8
Head Height (mm) 13.0
Adjustable Light Yes
Weight (g) 72
Warranty 2 years
Reference 1601137-001

Technical Specifications for All Slow Speed Handpieces

Specification CA NOVA 1:1 L MS CA NOVA 1:1 L Standard CA Prima 1:1 L MS CA Prima 1:1 L CA Prima 1:1 CA Prima 1:121 Ext. Spray
Use Case Restorative Rotary Endo Restorative & Rotary Endo Restorative & Rotary Endo Restorative & Rotary Endo Restorative & Rotary Endo Restorative & Surgical
Ratio 1:1 1:1 1:1 1:1 1:1 1:121
Bur Latch Type Latch Type Latch Type Latch Type Latch Type Latch Type
Speed Range (rpm) 100 – 40,000 100 – 40,000 100 – 40,000 100 – 40,000 100 – 40,000 100 – 40,000
Motor Compatibility Micro-Series Classic & Micro-Series Micro-Series Classic & Micro-Series Classic & Micro-Series Classic & Micro-Series
Noise Level (dBa) 55 55 58 58 58 58
Spray/Irrigation 1 separated air/water 1 separated air/water 1 mixed air/water spray 1 mixed air/water spray 1 mixed air/water spray 1 external spray
Head Diameter (mm) Top 8.3, Bottom 6.4 Top 8.3, Bottom 6.4 9.8 9.8 9.8 9.8
Neck Diameter (mm) 7.8 7.8 9 9 9 9
Head Height (mm) 13.0 13.0 14.6 14.6 14.6 14.6
Adjustable Light Yes Yes Yes Yes No No
Weight (g) 67 72 80 86 84 80
Warranty 2 years 2 years 2 years 2 years 2 years 2 years
Reference 1601136-001 1601137-001 1601237-001 1601236-001 1601235-001 1601267-001
