CA NOVA 1:5 L Standard

curve


CA NOVA 1:5 L Standard

Click image to view technical specs

CA NOVA 1:5 L Standard

High-Speed Electric Handpieces

The CA NOVA 1:5 L attachment represents the pinnacle of ergonomic design, up to 30% shorter and 23% lighter than traditional models for reduced fatigue and enhanced accessibility. Featuring an ultra-slim stainless steel body, the smallest head in its class with a diameter of 7.8 mm, CoolTouch+ heat-arresting technology, an anti-retraction valve, and four asymmetrical air/water sprays for optimal cooling, it delivers precision at up to 200,000 rpm while ensuring patient safety and double the service life of standard attachments. Its low noise level of 56 dBA, reduced vibrations, and compatibility with short motor couplings make it ideal for clinicians seeking efficiency without compromise.

CA NOVA Features at a Glance

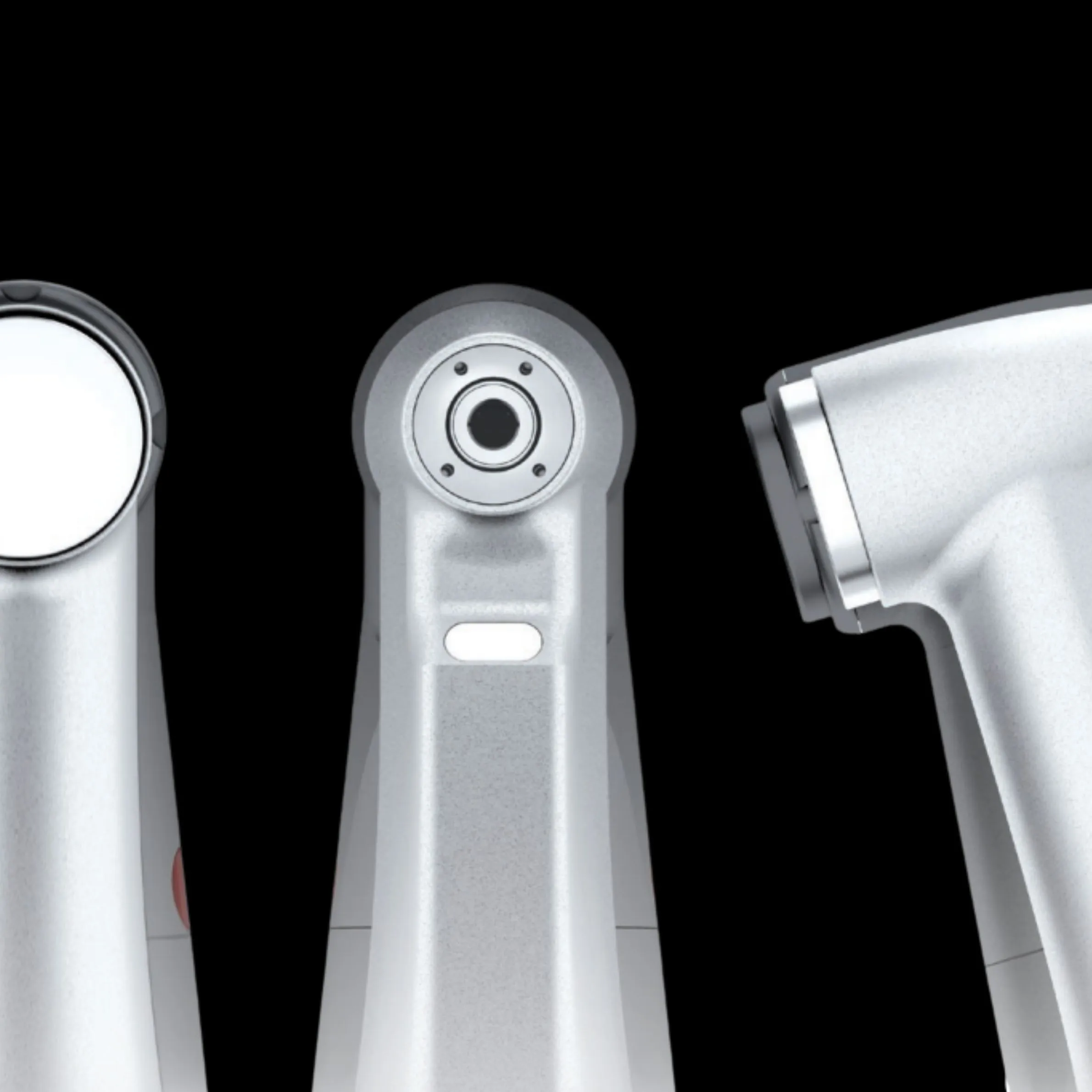

Improved Accessibility

Improved Accessibility & Visibility

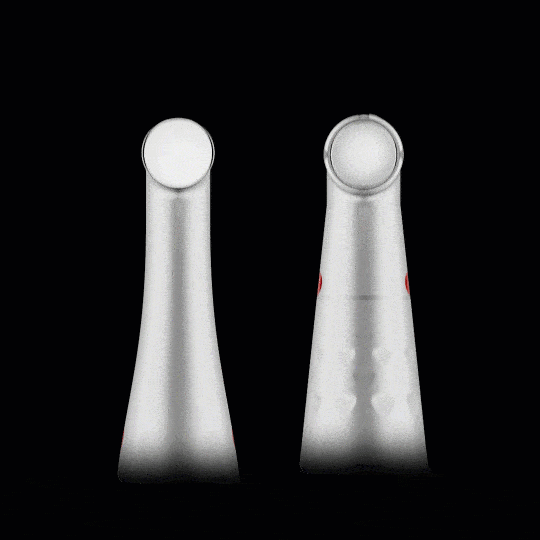

Ultra-slim stainless steel design with the smallest head in its class.

Smallest

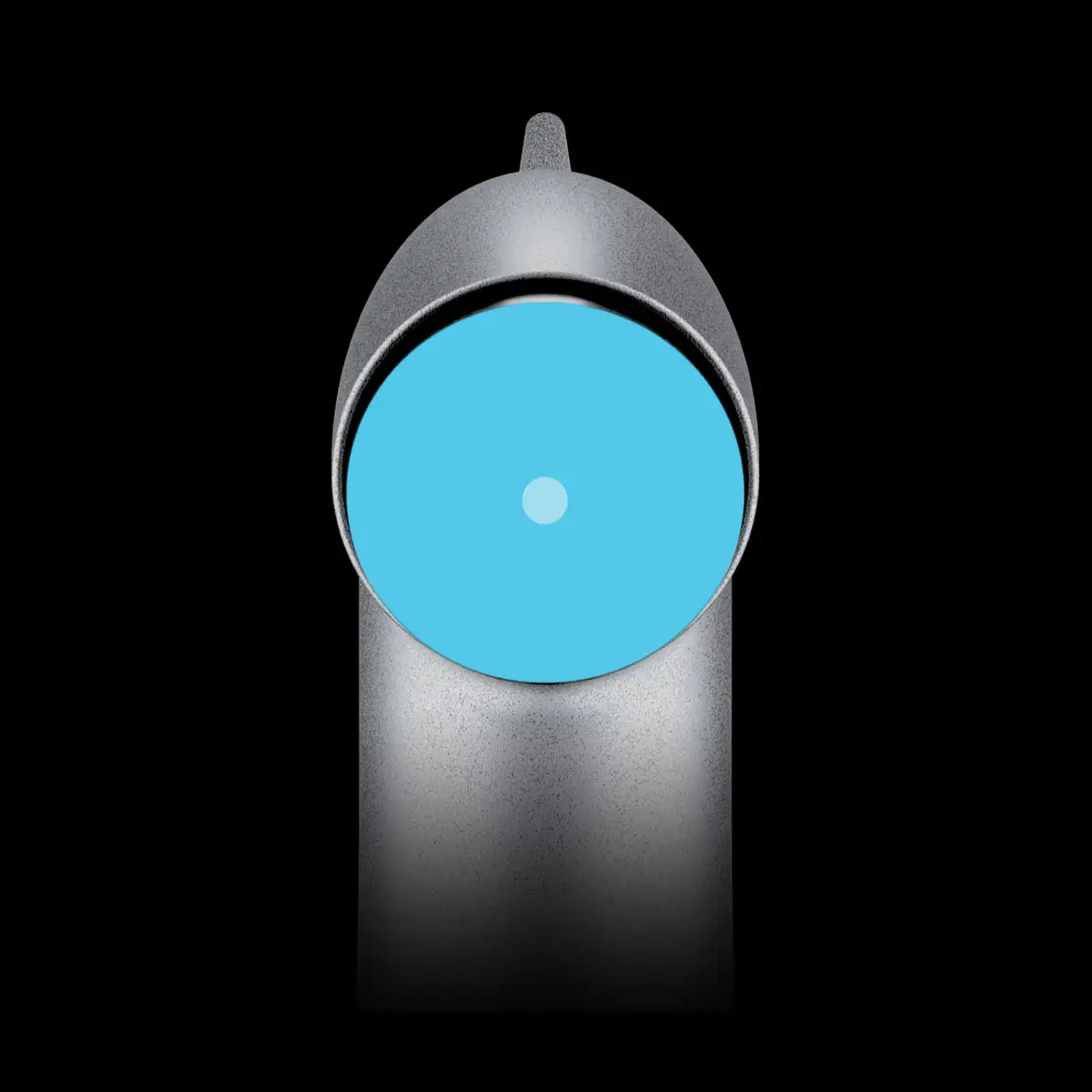

Enhanced Safety

Enhanced Safety

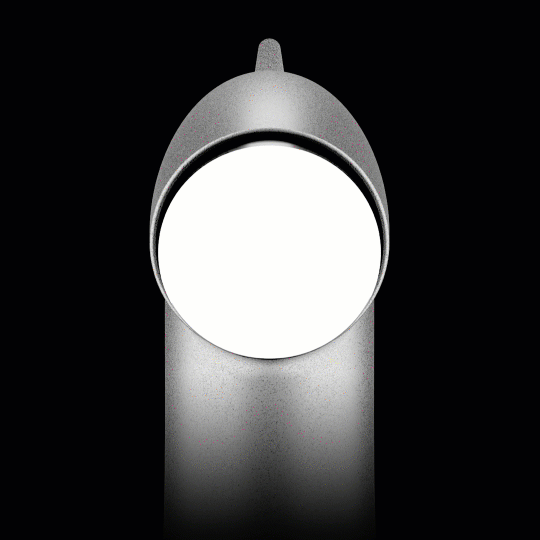

CoolTouch+™ prevents heat transfer to the push button, protecting the patient during high-speed operations.

Cool Touch

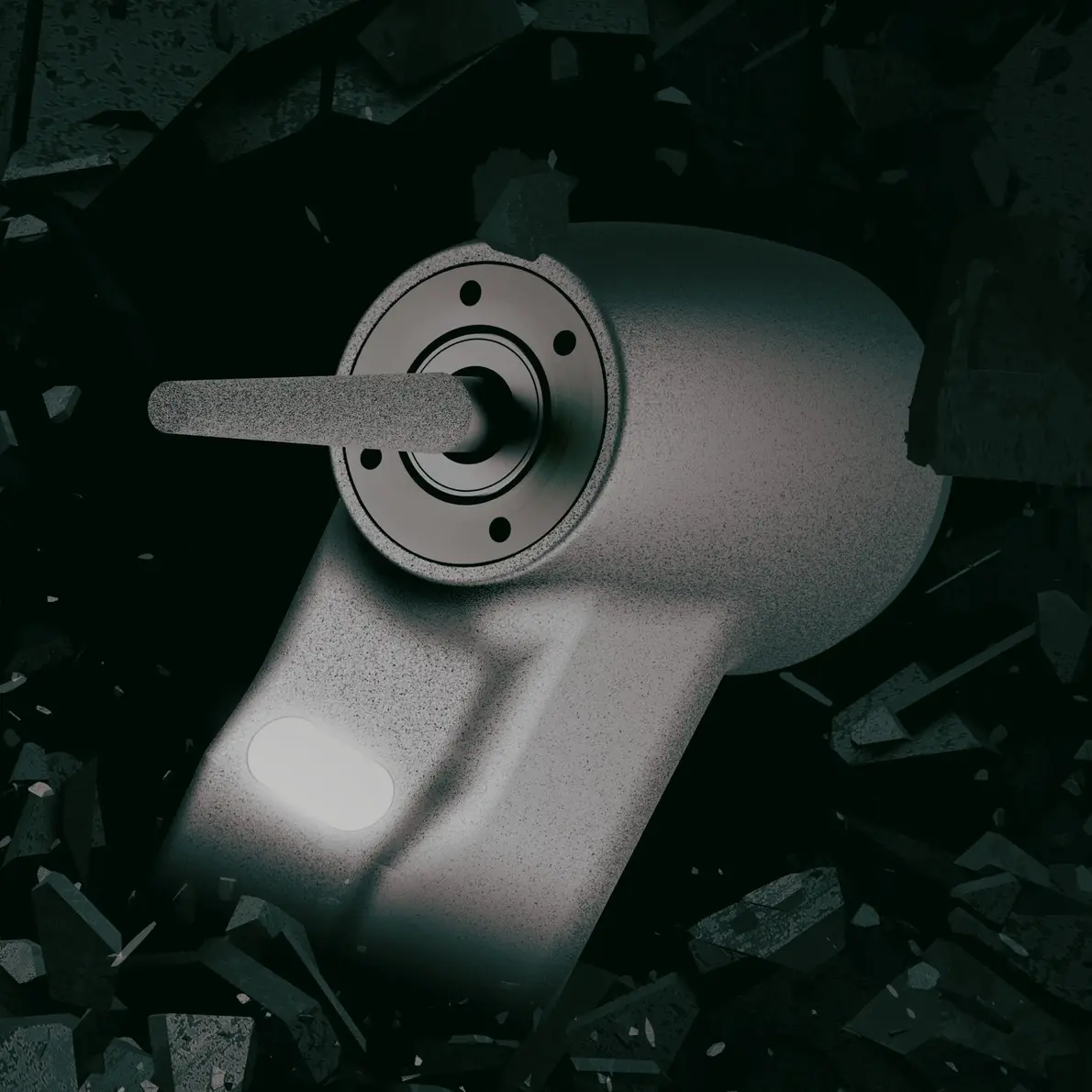

Extended Service Life

Extended Service Life

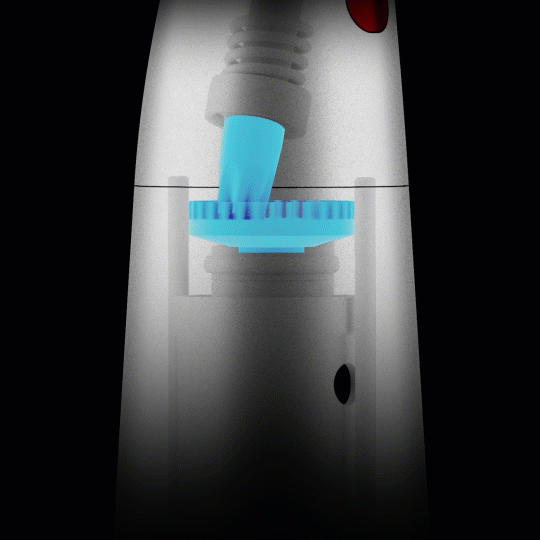

Cylkro® gears reduce friction and wear, providing 4x greater shock resistance, delivering double the service life

Extended Service Life

Technical Specifications for CA NOVA 1:5 L Standard

Specification CA NOVA 1:5 L Standard
Use Case Restorative
Ratio 1:5
Bur Friction Grip
Speed Range (rpm) 500 – 200,000
Motor Compatibility Micro-Series & Classic
Noise Level (dBa) 56
Spray/Irrigation 4 asymmetrical mixed (air/water)
Head Diameter (mm) Top 8.9, Bottom 6.2
Neck Diameter (mm) 7.8
Head Height (mm) 13.7
Adjustable Light Yes
Weight (g) 72
Warranty 2 years
Reference 1601139-001

Technical Specifications for All High Speed Electric Attachments

Specification CA NOVA 1:5 L Micro-Series CA NOVA 1:5 L Standard Classic CA 1:5 (L) Standard
Use Case Restorative Restorative Restorative
Ratio 1:5 1:5 1:5
Bur Friction Grip Friction Grip Friction Grip
Speed Range (rpm) 500 – 200,000 500 – 200,000 500 – 200,000
Motor Compatibility Micro-Series Micro-Series & Standard Micro-Series & Standard
Noise Level (dBa) 56 56 58
Spray/Irrigation 4 asymmetrical mixed (air/water) 4 asymmetrical mixed (air/water) 2 x 3 separate air/water sprays
Head Diameter (mm) Top 8.9, Bottom 6.2 Top 8.9, Bottom 6.2 9.8
Neck Diameter (mm) 7.8 7.8 9
Head Height (mm) 13.7 13.7 15.5 (22.9 with 19 mm bur)
Adjustable Light Yes Yes Yes (with L) / No (without L)
Weight (g) 66 72 90
Warranty 2 years 2 years 2 years
Reference 1601138-001 1601139-001 1600386-001 (with L)
1600325-001 (without L)
