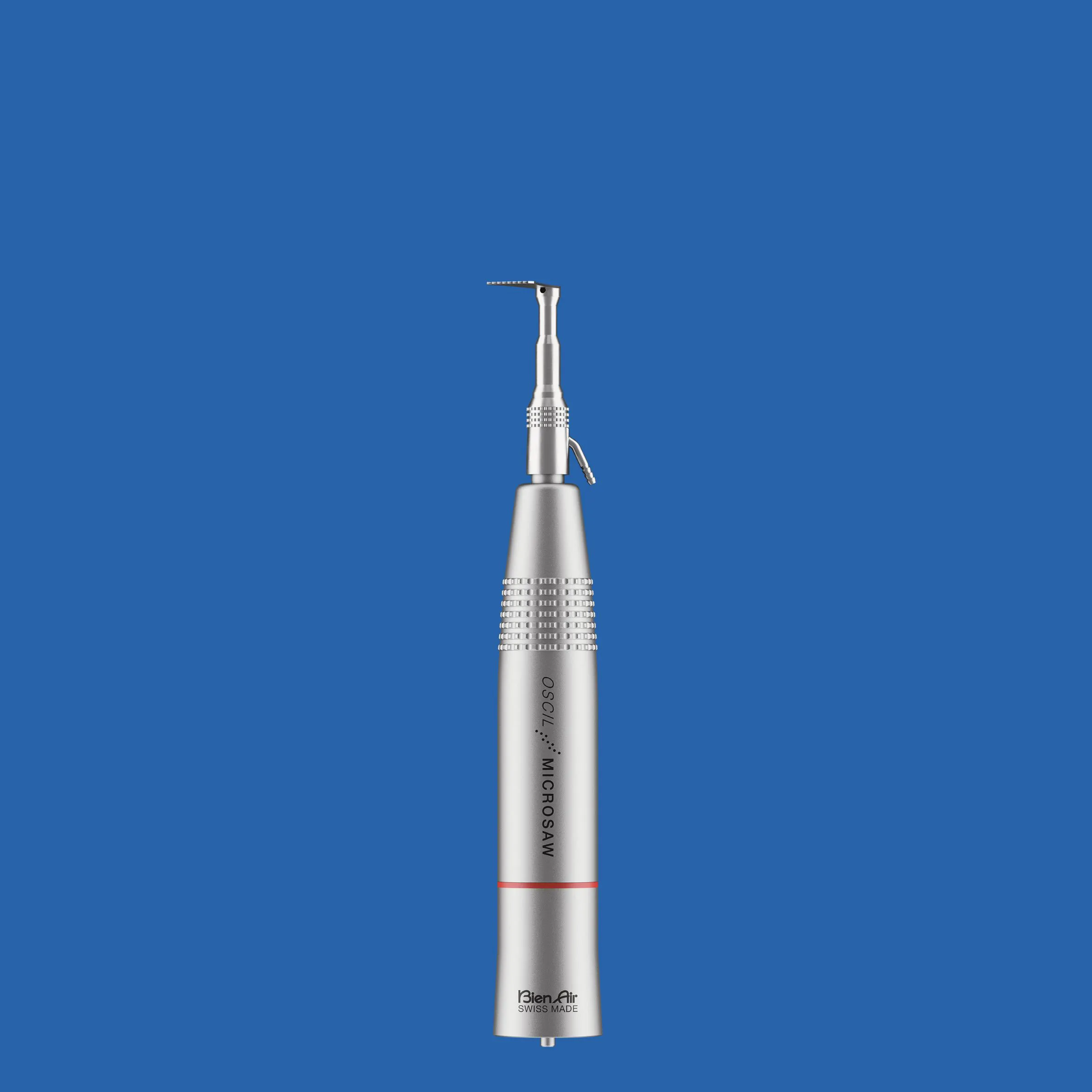

Oscil Microsaw

curve


Osil Microsaw

Click image to view technical specs

Oscil Microsaw

Microsaws

The Oscil Microsaw is optimized for bone grafting, IVRO, genioplasty, rhinoplasty, Le Fort, and BSSO surgeries. Its patented anti-rotation function and superior nerve-safe oscillating motion (with a 12° angular stroke) provide unmatched stability and risk minimization during mandibular corrections. Toolless blade changes, internal irrigation to prevent necrosis, and a built-in vibration-reduction system work together with the removable cooling ring for optimal performance. This lightweight, E-type compatible instrument achieves precise, controlled cuts in the most demanding maxillofacial applications.

Technical Specifications for Oscil Microsaw

Specification Oscil Microsaw
Weight (g) 117
Overall Length (mm) 117
Maximum Diameter (mm) 19.6
Motor Compatibility E-Type
Ratio 2.6:1
Maximum Reciprocating Frequency (cycles/min) 15,200
Angular Stroke N/A
Reference 1601298-001
